Tutorials

Unity Integrations

Unity Integrations A

  • Unity & Arduino Serial
      • Arduino Code
        //This example demonstrates how to utilize Arduino Uno & Serial

//################################### Rotary Encoder Settings
#define CLK 2        // was 18 (FireBeetle)
#define DT 4         // was 14 (FireBeetle)
#define SW 3         // was D3

int counter = 0;
int currentStateCLK;
int lastStateCLK;
String currentDir = "";
unsigned long lastButtonPress = 0;
//###################################


//Setup function
void setup() {
  //Begin a serial communication
  Serial.begin(9600);

  //Set encoder inputs
  pinMode(CLK, INPUT);
  pinMode(DT, INPUT);
  pinMode(SW, INPUT_PULLUP);

  // Read the initial state of CLK
  lastStateCLK = digitalRead(CLK);
}


//Main program loop
void loop() {
  rotEnc();
}


//Function responsible for getting the rotary encoder input (counter & button)
void rotEnc() {

  // Read the current state of CLK
  currentStateCLK = digitalRead(CLK);

  // If last and current state of CLK are different, then pulse occurred
  // React to only 1 state change to avoid double count
  if (currentStateCLK != lastStateCLK  && currentStateCLK == 1) {

    // If the DT state is different than the CLK state then
    // the encoder is rotating CCW so decrement
    if (digitalRead(DT) != currentStateCLK) {
      counter --;
      currentDir = "CCW";
    } else {
      // Encoder is rotating CW so increment
      counter ++;
      currentDir = "CW";
    }

    //This function ensures that the counter always remains
    //in a range between 0 and 16
    counter = constrain(counter, 0, 10);

    //Serial.print("Direction: ");
    //Serial.print(currentDir);
    //Serial.print(" | Counter: ");
    Serial.println(counter);
  }

  // Remember last CLK state
  lastStateCLK = currentStateCLK;

  // Read the button state
  int btnState = digitalRead(SW);

  //If we detect LOW signal, button is pressed
  if (btnState == LOW) {

    //if 50ms have passed since last LOW pulse, it means that the
    //button has been pressed, released and pressed again
    if (millis() - lastButtonPress > 50) {
      Serial.println(-1);
    }

    // Remember last button press event
    lastButtonPress = millis();
  }

  // Put in a slight delay to help debounce the reading
  delay(1);
}

      Unity Project:

  • Mobile Development (Phone Sensors)
    • Ensure Android platform is installed on Unity Hub
      1. Open Unity Hub.
      1. Navigate to the Installs tab from the left-hand menu.
      1. Click the gear icon (Settings) next to your installed Unity Editor version and select Add Modules.
      1. In the “Add Modules” window, check the box for Android Build Support.
      1. Expand the “Android Build Support” module and ensure that Android SDK & NDK Tools and OpenJDK are also checked.

    Unity Project:

Unity Integrations B

  • MediaPipe
    • Install Python 3.11 and dependencies (via CMD or Terminal)

      python -m pip install --upgrade pip
      python -m pip install opencv-python mediapipe python-osc

    • Python Code

      Run via CMD or Terminal

      python mediapipeScript.py

      """
Hand Gesture → OSC (with DEBUG output)
"""

import cv2
import mediapipe as mp
import math
import argparse
import time
from pythonosc import udp_client

mp_hands = mp.solutions.hands
mp_drawing = mp.solutions.drawing_utils


def distance(a, b):
    return math.sqrt((a.x - b.x)**2 + (a.y - b.y)**2 + (a.z - b.z)**2)


def is_finger_extended(landmarks, tip_id, pip_id, wrist):
    return distance(landmarks[tip_id], wrist) > distance(landmarks[pip_id], wrist)


def recognize_gesture(lm):
    wrist = lm[0]
    thumb_tip = lm[4]
    index_tip = lm[8]

    index_up = is_finger_extended(lm, 8, 6, wrist)
    middle_up = is_finger_extended(lm, 12, 10, wrist)
    ring_up = is_finger_extended(lm, 16, 14, wrist)
    pinky_up = is_finger_extended(lm, 20, 18, wrist)
    thumb_out = distance(thumb_tip, lm[5]) > distance(lm[3], lm[5])

    fingers_up = sum([index_up, middle_up, ring_up, pinky_up])

    if distance(thumb_tip, index_tip) < 0.05:
        return "pinch"
    if thumb_out and fingers_up == 4:
        return "open"
    if not thumb_out and fingers_up == 0:
        return "close"
    if index_up and not middle_up and not ring_up and not pinky_up:
        return "index"
    if thumb_out and fingers_up == 0:
        return "thumb"
    return "none"


def palm_center(lm):
    ids = [0, 5, 9, 13, 17]
    x = sum(lm[i].x for i in ids) / 5
    y = sum(lm[i].y for i in ids) / 5
    z = sum(lm[i].z for i in ids) / 5
    return x, y, z


def main():
    parser = argparse.ArgumentParser()
    parser.add_argument("--ip", default="127.0.0.1")
    parser.add_argument("--port", type=int, default=9002)
    parser.add_argument("--cam", type=int, default=0)
    parser.add_argument("--no-preview", action="store_true")
    args = parser.parse_args()

    osc = udp_client.SimpleUDPClient(args.ip, args.port)
    cap = cv2.VideoCapture(args.cam)
    cap.set(cv2.CAP_PROP_FRAME_WIDTH, 1280)
    cap.set(cv2.CAP_PROP_FRAME_HEIGHT, 720)

    print("=" * 60)
    print(f"  OSC TARGET:  {args.ip}:{args.port}")
    print(f"  CAMERA:      {args.cam}")
    print(f"  CAM OPENED:  {cap.isOpened()}")
    print("=" * 60)

    if not cap.isOpened():
        print("[ERROR] Camera not found! Try --cam 1 or --cam 2")
        return

    # Debug: throttle prints to once per second
    last_print = 0
    frame_count = 0

    with mp_hands.Hands(
        max_num_hands=2,
        min_detection_confidence=0.7,
        min_tracking_confidence=0.5,
    ) as hands:

        print("[RUNNING] Show your hand to the camera. Press 'q' to quit.
")

        while cap.isOpened():
            ret, frame = cap.read()
            if not ret:
                print("[ERROR] Can't read frame from camera!")
                break

            frame = cv2.flip(frame, 1)
            rgb = cv2.cvtColor(frame, cv2.COLOR_BGR2RGB)
            rgb.flags.writeable = False
            results = hands.process(rgb)

            num_hands = 0
            now = time.time()
            frame_count += 1
            should_print = (now - last_print) >= 1.0  # print once per second

            if results.multi_hand_landmarks and results.multi_handedness:
                num_hands = len(results.multi_hand_landmarks)

                for hand_lm, hand_info in zip(results.multi_hand_landmarks, results.multi_handedness):
                    side = hand_info.classification[0].label.lower()
                    lm = hand_lm.landmark

                    x, y, z = palm_center(lm)
                    gesture = recognize_gesture(lm)

                    # Send OSC
                    osc.send_message(f"/hand/{side}/position", [x, y, z])
                    osc.send_message(f"/hand/{side}/gesture", [gesture])

                    # DEBUG print once per second
                    if should_print:
                        print(f"  [{side.upper()}]  pos=({x:.3f}, {y:.3f}, {z:.3f})  gesture={gesture}")
                        print(f"         → OSC: /hand/{side}/position  [{x:.3f}, {y:.3f}, {z:.3f}]")
                        print(f"         → OSC: /hand/{side}/gesture   [{gesture}]")

                    # Preview
                    if not args.no_preview:
                        mp_drawing.draw_landmarks(frame, hand_lm, mp_hands.HAND_CONNECTIONS)
                        h, w, _ = frame.shape
                        cv2.putText(frame, f"{side}: {gesture}",
                                    (int(x * w) - 40, int(y * h) - 20),
                                    cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 255, 0), 2)

            osc.send_message("/hand/count", [num_hands])

            if should_print:
                print(f"  [HANDS] count={num_hands}  (frame #{frame_count})")
                if num_hands == 0:
                    print("  ⚠ No hands detected — make sure your hand is visible to the camera")
                print()
                last_print = now

            if not args.no_preview:
                cv2.imshow("Hand Tracking (DEBUG)", frame)
                if cv2.waitKey(1) & 0xFF == ord("q"):
                    break

    cap.release()
    cv2.destroyAllWindows()
    print("[STOPPED]")


if __name__ == "__main__":
    main()

    Unity Project:

  • Daydream/Runpod

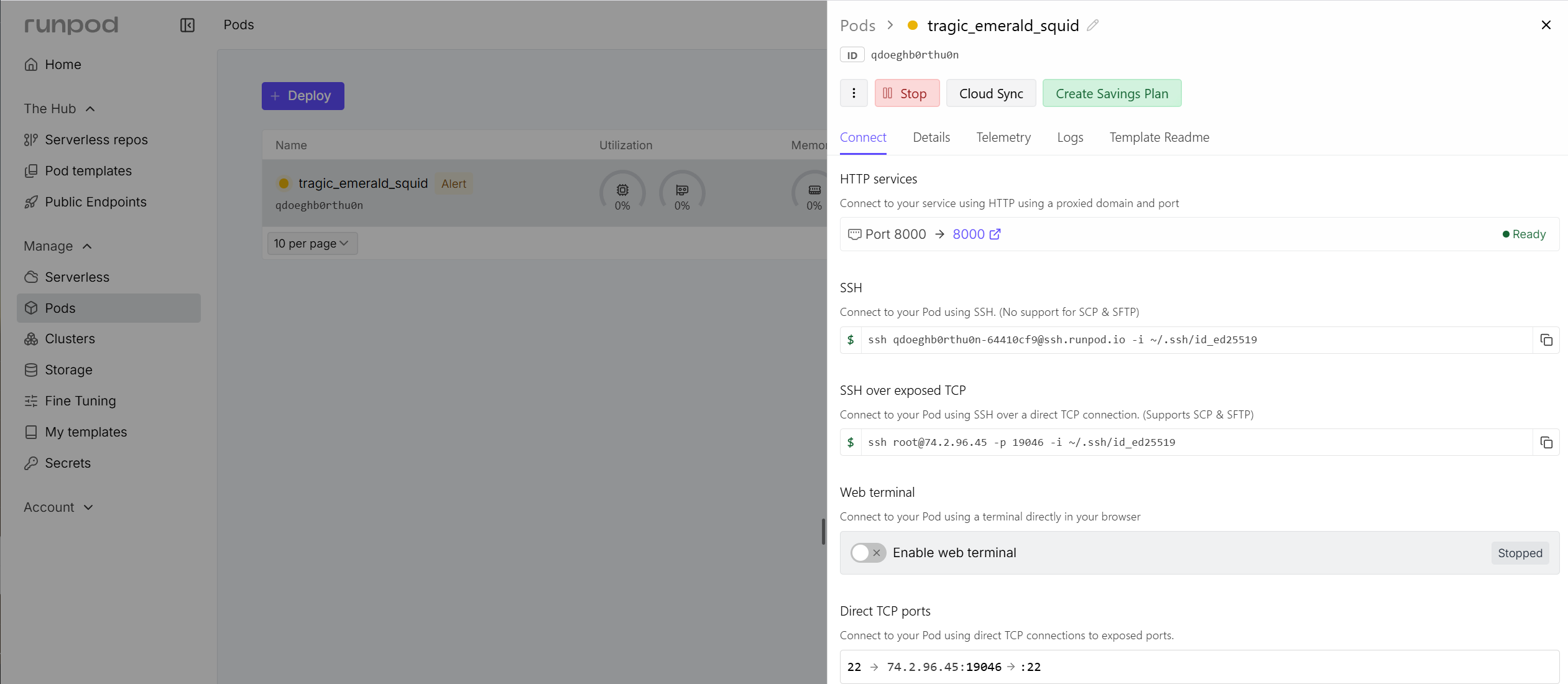

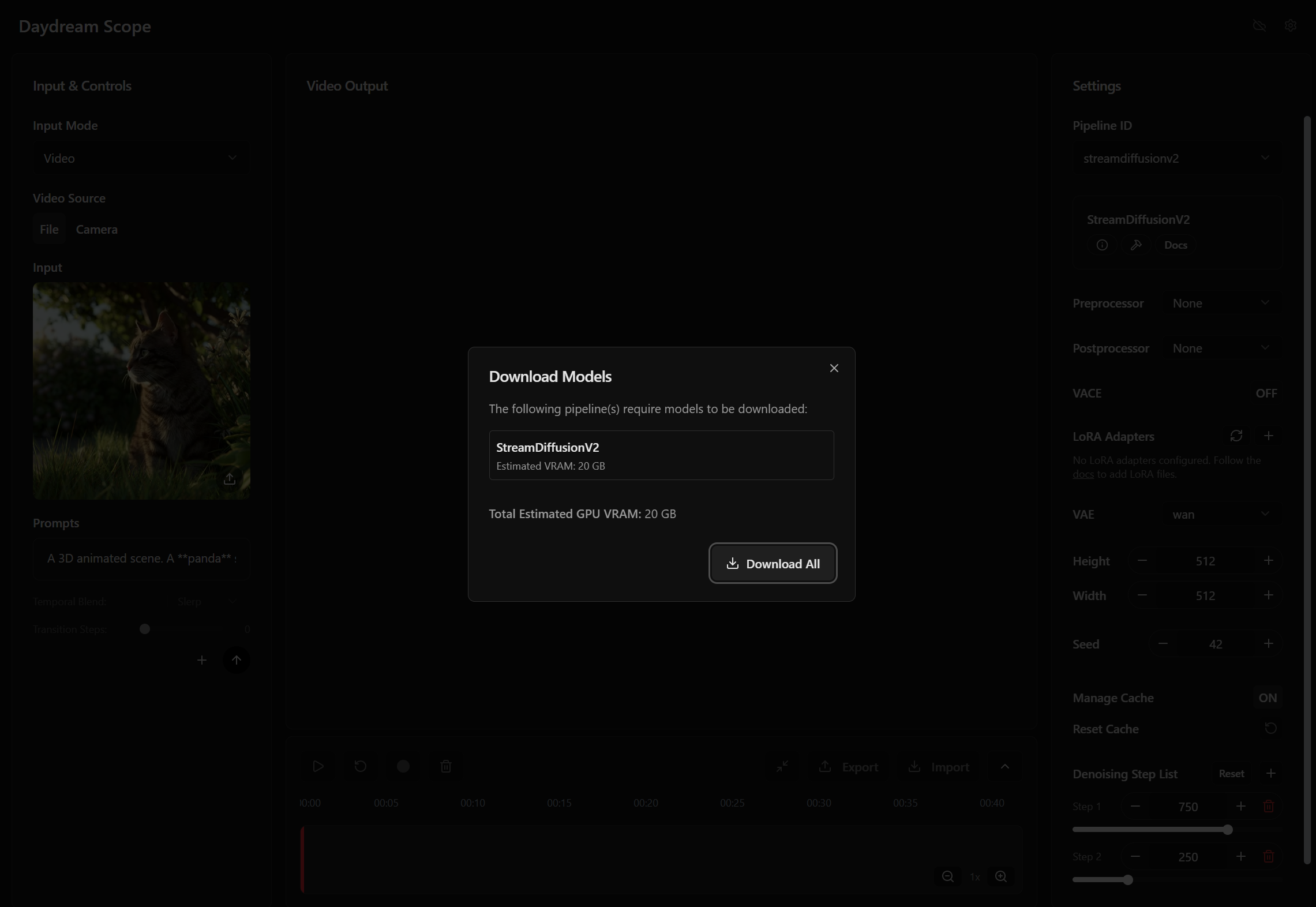

    1. Setup a Runpod instance using these instructions: https://docs.daydream.live/scope/getting-started/quickstart#cloud-runpod. After the instance is deployed, click on the HTTP Services > 8000 port link. Copy the URL and use it in Unity (step 3). Finally, make sure that the models are downloaded (streamdiffusion has better FPS performance).
    1. Download the Unity, and open it (preferrably with version 6000.0.50f1 LTS).
    1. Open scene DaydreamRunpod and find the DaydreamAPI gameobject. On its Inspector set the Runpod Base URL on the Runpod URL copied from step 1. Run the Game, and check the Console for errors. If there are no errors, then in a couple of seconds you will be able to see the camera feed of the computer and the Daydream response.

    Unity Project:
